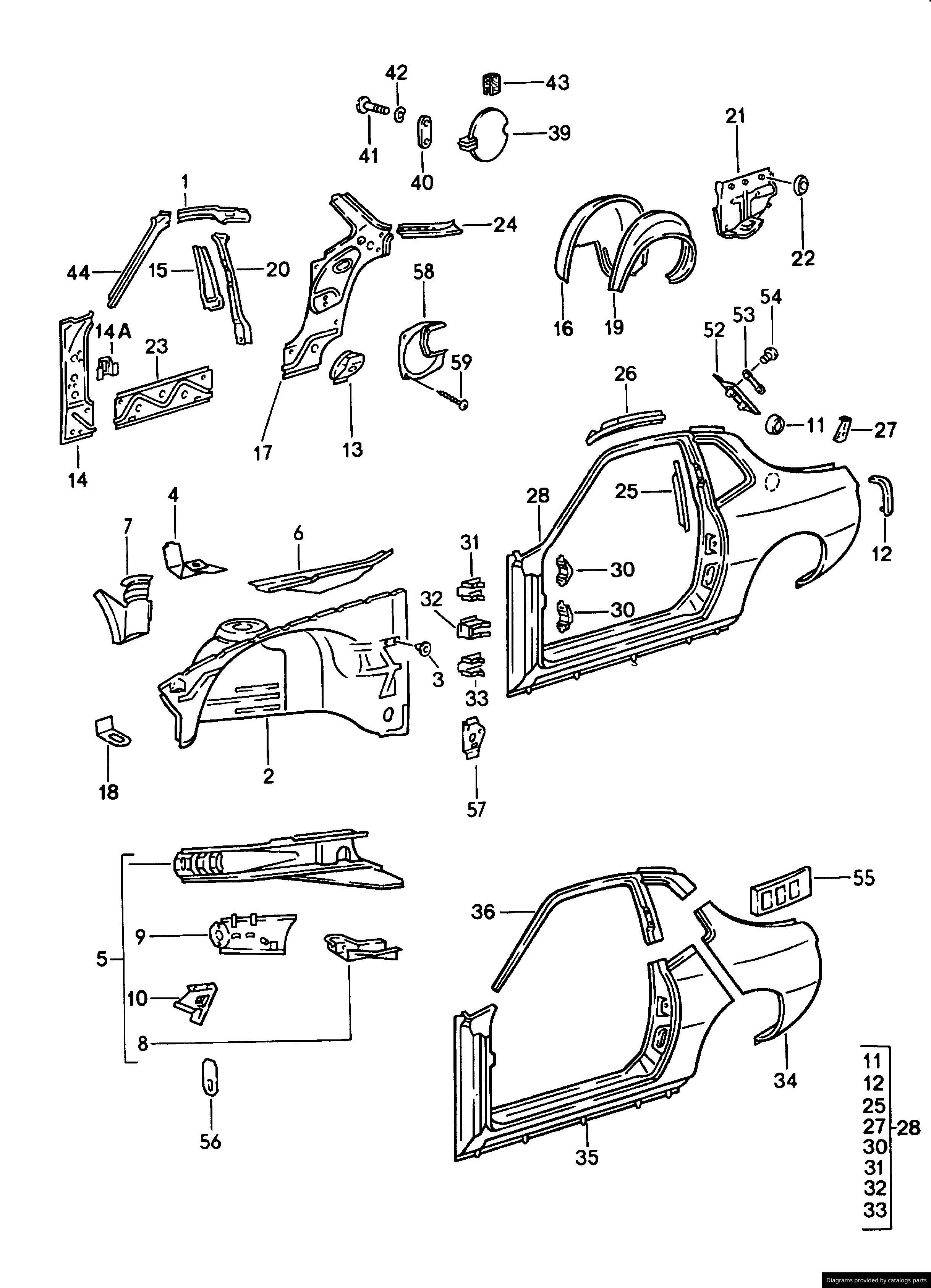

* Vous pouvez appuyer sur le numéro de la pièce pour l'afficher sur le diagramme. Et inversement.
| Non | Code de la pièce | Titre | Note | QNT | Modèle | Prix |
|---|---|---|---|---|---|---|
| Side part | - | |||||
| 1 | 477809037 | Web plate | left inner |
1 | From ... | |
| 1 | 477809037 | Web plate | left inner |
1 | PR:650 | From ... |
| 1 | 477809038 | Web plate | right inner |
1 | From ... | |
| 311881945A | Bungs | 3 | - | |||
| 2 | 94450190103 | Wheel housing (complete) |
left | 1 | - | |
| 2 | 94450190202 | Wheel housing (complete) also use: |
right rhd 478 809 446 |
1 | - | |
| 2 | 94450110102 | Sectional part - wheel housing | left | 1 | From ... | |
| 2 | 477809108C | Sectional part - wheel housing | right | 1 | From ... | |
| 99970310340 | Bungs | 2 | - | |||
| 478809446 | Bracket throttle control |
rhd | 1 | - | ||
| 3 | N 0200251 | Bungs | X | From ... | ||
| 3 | 99970317940 | Bungs | X | From ... | ||
| 4 | 94450109400 | Bracket Ignition coil |
1 | - | ||
| 5 | 94450101700 | Side member | left | 1 | From ... | |
| 5 | 94450101800 | Side member | right | 1 | From ... | |
| 6 | 94450211902 | Side member upper section | lhd left upper |
1 | - | |
| 6 | 94450212002 | Side member upper section | lhd right upper |
1 | - | |
| 6 | 94550211902 | Side member upper section | rhd left upper |
1 | From ... | |
| 6 | 94550212002 | Side member upper section Discontinued part |
rhd right upper |
1 | - | |
| 6 | 94550212003 | Side member upper section | rhd right upper |
1 | - | |
| 7 | 94450129200 | Bracket Reservoir |
1 | From ... | ||
| 8 | 95150116500 | Closing element | left | 1 | - | |
| 8 | 95150116600 | Closing element | right | 1 | - | |
| 9 | 94450108100 | Closing plate | left | 1 | From ... | |
| 9 | 94450108200 | Closing plate | right | 1 | From ... | |
| 10 | 94450106500 | Web plate | left | 1 | - | |
| 10 | 94450106600 | Web plate | right | 1 | From ... | |
| 11 | 477809040 | Pot fuel filler neck |
1 | - | ||
| 12 | 477809375A | Bracket | left | 1 | From ... | |
| 12 | 477809376A | Light bracket | right | 1 | From ... | |
| 13 | 477809387A | corner panel | left | 1 | - | |
| 13 | 477809388A | corner panel | right | 1 | - | |
| 14 | 477809393A | Hinge pillar also use: POS. 14 A |
left lhd |
1 | From ... | |
| 14 | 477809394A | Hinge pillar also use: |
right POS. 14 A rhd |
1 | From ... | |
| 14 | 94450237300 | Support Switch for rear lid release |
1 | From ... | ||
| 15 | 477809397 | Central pillar | left | 1 | From ... | |
| 15 | 477809398 | Central pillar | right | 1 | From ... | |
| 16 | 94450104300 | Wheel housing | left inner |
1 | From ... | |
| 16 | 94450104400 | Wheel housing | right inner |
1 | From ... | |
| 17 | 94450290102 | Side part F >> 92-GN400 326 |
left inner |
1 | From ... | |
| 17 | 94450290104 | Side part also use: F 92-GN400 327>> |
left inner |
1 | From ... | |
| 94450316501 | Bracket mount | 1 | From ... | |||
| 94450317100 | Support 1X POS. 58 3X POS. 59 |
2 | From ... | |||
| 17 | 94450290202 | Side part F >> 92-GN400 326 |
right inner |
1 | From ... | |
| 17 | 94450290204 | Side part also use: 1X POS. 58 3X POS. 59 F 92-GN400 327>> |
right inner |
1 | From ... | |
| 18 | 94450351600 | Securing bracket | 1 | - | ||
| 19 | 477809411B | Wheel housing | left outer |
1 | - | |
| 19 | 477809412B | Wheel housing | right outer |
1 | - | |
| 20 | 94450204900 | Reinforcement Central pillar |
left | 1 | From ... | |
| 20 | 94450205000 | Reinforcement Central pillar |
right | 1 | From ... | |
| 21 | 94450202500 | Closing plate | left inner |
1 | - | |
| 21 | 94450202502 | Side part | left inner |
1 | - | |
| 94450202502GRV | primed | From ... | ||||
| 21 | 94450202601 | Side part | right inner |
1 | - | |
| 21 | 94450202603 | Side part | right inner |
1 | - | |
| 94450202603GRV | primed | From ... | ||||
| 22 | 803803583 | Rubber grommet Discontinued part |
X | From ... | ||
| 22 | 99970319540 | Rubber grommet | X | From ... | ||
| 22 | 021119569 | Rubber grommet | X | PR:650 | From ... | |
| 23 | 477809433 | Web plate Discontinued part |
lower | 2 | - | |
| 23 | 47780943300 | Web plate | lower | 2 | From ... | |
| 24 | 94450243900 | Reinforcement for side panel Discontinued part |
left | 1 | From ... | |
| 24 | 94450243900 | Reinforcement for side panel | left | 1 | From ... | |
| 24 | 477809440 | Reinforcement | right | 1 | - | |
| 25 | 477809445 | Reinforcement | left | 1 | From ... | |
| 25 | 477809446 | Reinforcement | right | 1 | From ... | |
| 26 | 477809585 | end piece roof frame |
left | 1 | From ... | |
| 26 | 477809586 | end piece roof frame |
right | 1 | From ... | |
| 27 | 477809617 | Retaining plate Rear lid |
left | 1 | From ... | |
| 27 | 477809618 | Retaining plate Rear lid |
right | 1 | From ... | |
| 28 | 477809601BE | side panel for center console | left outer |
1 | - | |
| 28 | 477809602BE | side panel for center console | right outer |
1 | - | |
| 30 | 477809653 | Bracket | 4 | From ... | ||
| 31 | 477809655 | Hinge reinforcement | upper | 2 | From ... | |
| 32 | 477809625 | Reinforcement Bracket |
2 | From ... | ||
| 33 | 477809621 | Hinge reinforcement | left lower |
1 | - | |
| 33 | 477809622 | Hinge reinforcement | right lower |
1 | - | |
| 34 | 477809843F | Sectional part - wing | left | 1 | - | |
| 34 | 477809844F | Sectional part - side panel | right | 1 | - | |
| 35 | 477809847B | Sectional part - side member | left | 1 | - | |
| 35 | 477809848B | Sectional part - side member | right | 1 | - | |
| 36 | 477809849A | Sectional part - side panel frame/roof edge |
left | 1 | - | |
| 36 | 477809850A | Sectional part - side panel frame/roof edge |
right | 1 | - | |
| 39 | 477853095A | Flap | 1 | - | ||
| 40 | 477853403 | Underlay | X | From ... | ||
| 41 | 90014600302 | fillister hd. bolt M 5 X 11 |
2 | - | ||
| 42 | N 0122224 | Spring washer B 5 |
2 | From ... | ||
| 43 | 93150439700 | Stop | rubber | 1 | From ... | |
| 44 | 94450204100 | Side part | left inner |
1 | From ... | |
| 44 | 94450204200 | Side part | right inner |
1 | From ... | |
| 52 | 477809097 | Reinforcement | left | 1 | - | |
| 52 | 477809098 | Reinforcement | right | 1 | - | |
| 53 | 92850435502 | Seal | 4 | From ... | ||
| 54 | 99901500507 | Round-head screw | 4 | From ... | ||
| 55 | 94455527501 | Filler piece | left | 1 | From ... | |
| 56 | 477809035 | Bracket Fluid reservoir |
1 | From ... | ||
| 57 | 94450207100 | Support | 1 | From ... | ||
| 58 | 94450462100 | Adapter for Loudspeaker |
left | 1 | From ... | |
| 58 | 94450462200 | Adapter for Loudspeaker |
right | 1 | From ... | |
| 59 | N 0901141 | oval head panel screw (combi) B 3,9 X 9,5 |
8 | - |
